Eco-Friendly 100mm Geocell for Vegetation Erosion Control on Mild Slopes

Name: EcoFriendly 100mm Geocell for Vegetation Erosion Control on Mild Slopes
Brand: GeoMax
Price: 1 USD

Quality Eco-Friendly 100mm Geocell for Vegetation Erosion Control on Mild Slopes for sale

Brand Name : GeoMax

Model Number : GM100-356

Certification : CE,ISO9001-2015

Place of Origin : ANHUI CHINA

MOQ : 1000 ㎡

Price : Negotiation

Payment Terms : T/T, L/C

Supply Ability : 3000㎡ per day

Delivery Time : 10-20 days

Packaging Details : Folded strips are wrapped by film and layed on pallets or as requested

Material : 100% HDPE Plastic

Thickness : 1.2-1.5mm

Surface : Smooth or Textured surface

Tensile Strength : 25kN/m

Standard : ASTM; GB Standard；

Peel Strength : 14.2 kN/m

Height : 100mm

Color : Black;Yellow;Green

Welding Distance : 356mm

Density : 0.950 g/cm3

Certificate : CE;ISO;ASTM

Contact Now

Eco-Friendly 100mm Geocell for Vegetation Erosion Control on Mild Slopes

GEOMAX® GEOCELL PRODUCT INTRODUCTION

GeoMax® Geocell is an innovative geotechnical system built to enhance soil stability, support heavy loads, and prevent erosion. Crafted from high-density polyethylene (HDPE) into a tough 3D cellular structure, it distributes forces efficiently and works with various infills (soil, sand, recycled aggregates). Resistant to UV, chemicals, and environmental stress, it delivers long-term durability—making it a versatile, sustainable choice for civil and environmental projects. Used widely in roads, railways, slopes, landfills, and foundations, it gives engineers and contractors a reliable, efficient, and eco-friendly ground reinforcement solution.

SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

DETAILED PHOTOS

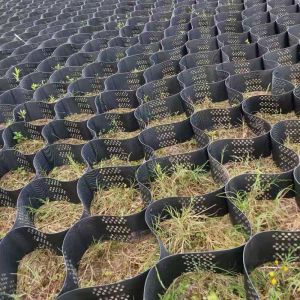

Eco-Friendly 100mm Geocell for Vegetation Erosion Control on Mild Slopes

APPLICATIONS

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

PRODUCTION LINE

INVENTION AND TESTING

PRODUCT AREA

FAQ:

How does carbon black dispersion affect longevity?
Proper carbon black dispersion is critical for:

Uniform UV protection throughout material thickness
Prevention of localized degradation spots
Maintaining mechanical properties over time
Ensuring consistent performance across all areas

What quality controls ensure weld integrity?
Our welding quality assurance includes:

Ultrasonic energy monitoring during welding
Peel testing of sample welds from each production batch
Visual inspection of weld uniformity
Destructive testing of random samples
