Perforated 75mm HDPE Geocell for Golf Course Fairway & Drainage Stabilization

Brand Name : GeoMax

Model Number : GM75-356

Certification : CE,ISO9001-2015

Place of Origin : ANHUI CHINA

MOQ : 1000 ㎡

Price : Negotiation

Payment Terms : T/T, L/C

Supply Ability : 3000㎡ per day

Delivery Time : 10-20 days

Packaging Details : Folded strips are wrapped by film and layed on pallets or as requested

Material : 100% HDPE Plastic

Thickness : 1.2-1.5mm

Surface : Smooth or Textured surface

Tensile Strength : 25kN/m

Standard : ASTM; GB Standard；

Peel Strength : 14.2 kN/m

Height : 75mm

Color : Black;Yellow;Green

Welding Distance : 356mm

Density : 0.950 g/cm3

Certificate : CE;ISO;ASTM

Contact Now

Perforated 75mm HDPE Geocell for Golf Course Fairway & Drainage Stabilization

GEOMAX® GEOCELL PRODUCT INTRODUCTION

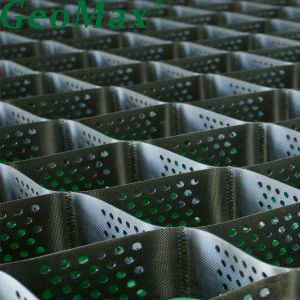

GeoMax® Geocell is an innovative ground improvement system designed to strengthen weak subgrades, enhance load distribution, and control surface erosion. Made from high-density polyethylene (HDPE), it expands into a rigid three-dimensional cell matrix that stabilizes the filled material—whether soil, sand, gravel, or recycled aggregates. Its robust composition ensures long-lasting performance with strong resistance to UV exposure, chemicals, and environmental degradation. GeoMax® Geocell is suitable for a wide range of civil and environmental projects, including transport infrastructure, slope and embankment protection, landfill works, and foundation enhancement, offering engineers a dependable, sustainable, and cost-efficient solution for soil reinforcement.

SPECIFICATIONS

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150
Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

DETAILED PHOTOS

Perforated 75mm HDPE Geocell for Golf Course Fairway & Drainage Stabilization Perforated 75mm HDPE Geocell for Golf Course Fairway & Drainage Stabilization

Perforated 75mm HDPE Geocell for Golf Course Fairway & Drainage Stabilization Perforated 75mm HDPE Geocell for Golf Course Fairway & Drainage Stabilization

APPLICATIONS

Perforated 75mm HDPE Geocell for Golf Course Fairway & Drainage Stabilization

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

Perforated 75mm HDPE Geocell for Golf Course Fairway & Drainage Stabilization

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

Perforated 75mm HDPE Geocell for Golf Course Fairway & Drainage Stabilization

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

Perforated 75mm HDPE Geocell for Golf Course Fairway & Drainage Stabilization

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

PRODUCTION LINE

Perforated 75mm HDPE Geocell for Golf Course Fairway & Drainage Stabilization

INVENTION AND TESTING

Perforated 75mm HDPE Geocell for Golf Course Fairway & Drainage Stabilization

PRODUCT AREA

Perforated 75mm HDPE Geocell for Golf Course Fairway & Drainage Stabilization

FAQ:

What design methodologies do you recommend?
We recommend:

  • Empirical methods based on field experience

  • Semi-empirical approaches using modified California Bearing Ratio (CBR)

  • Analytical methods considering composite modulus

  • Finite element modeling for complex applications

How do you determine required interface friction?
Interface friction requirements are determined by:

  • Slope angle and height

  • Soil properties and loading conditions

  • Safety factor requirements

  • Potential water pressure conditions

Perforated 75mm HDPE Geocell for Golf Course Fairway & Drainage Stabilization
