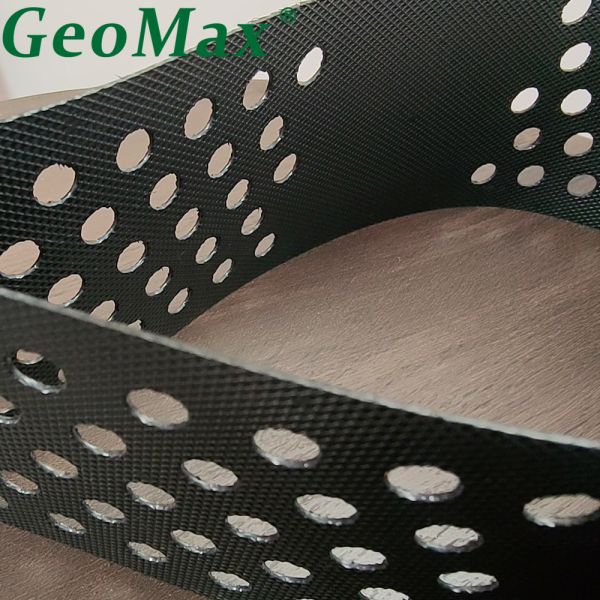

HDPE Geocell GM712-150mm Erosion Control Cell for Gentle Slopes and Embankments

Name: HDPE Geocell GM712150mm Erosion Control Cell for Gentle Slopes and Embankments
Brand: GeoMax
Price: 1 USD

Quality HDPE Geocell GM712-150mm Erosion Control Cell for Gentle Slopes and Embankments for sale

Brand Name : GeoMax

Model Number : GM150-712

Certification : CE,ISO9001-2015

Place of Origin : ANHUI CHINA

MOQ : 1000 ㎡

Price : Negotiation

Payment Terms : T/T, L/C

Supply Ability : 3000㎡ per day

Delivery Time : 10-20 days

Packaging Details : Folded strips are wrapped by film and layed on pallets or as requested

Material : 100% HDPE Plastic

Thickness : 1.5mm

Surface : Smooth or Textured surface

Tensile Strength : 25kN/m

Standard : ASTM; GB Standard

Peel Strength : 14.2 kN/m

Height : 150mm

Color : Black;Yellow;Green

Welding Distance : 712mm

Density : 0.950 g/cm3

Certificate : CE;ISO;ASTM

Contact Now

HDPE Geocell GM712-150mm Erosion Control Cell for Gentle Slopes and Embankments

GEOMAX® GEOCELL PRODUCT INTRODUCTION

GeoMax® Geocell is a high-performance geotechnical solution designed for modern civil and environmental engineering. Engineered from high-density polyethylene (HDPE), it forms a strong three-dimensional cellular structure that improves soil stability, load-bearing capacity, and erosion resistance across various terrains and climates.

Reliable Engineering Performance

Built for strength and longevity, GeoMax® Geocell ensures uniform load distribution, excellent tensile strength, and superior resistance to UV exposure, chemical corrosion, and biological degradation. Its flexible structure adapts to a wide range of infill materials — from natural soil to sand and recycled aggregates — offering both performance and sustainability.

Key Advantages

Exceptional mechanical strength and durability in challenging ground conditions
Long-term stability under heavy load and harsh environments
Sustainable construction with recyclable and local materials
Proven results in global infrastructure and environmental projects

Typical Applications

Roads & Railways | Landfill Containment | Slope Protection | Parking & Foundation Support | Pipeline Bedding & Stabilization

SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

DETAILED PHOTOS

HDPE Geocell GM712-150mm Erosion Control Cell for Gentle Slopes and Embankments

APPLICATIONS

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

PRODUCTION LINE

INVENTION AND TESTING

PRODUCT AREA

FAQ:

What is the strip tensile strength of the welded seams?
The seam strength is a critical performance indicator. Our ultrasonic welding process ensures the seam strength is typically ≥90% of the parent material's strength, guaranteeing the integrity of the cellular structure under load.
How do you calculate the required bearing capacity for a project using GeoMax®?
Bearing capacity is a function of subgrade strength, geocell height, and infill properties. We provide design methodologies and software support based on established principles (e.g., the "beam on elastic foundation" model) to determine the exact specifications for your project.
What is the friction angle of the geocell-infill composite?
The composite friction angle is significantly higher than the infill alone due to lateral confinement. It can typically range from 45° to over 55°, depending on the infill type and density.
